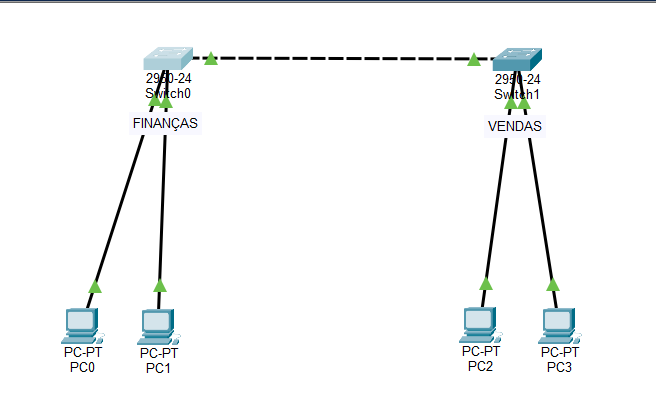

**Arquitetura do projeto **
COMANDOS DE CRIAÇÃO DA VLAN
Switch(config)#vlan 10
Switch(config-vlan)#name pesquisa
Switch(config-vlan)#exit
Switch(config)#vlan 20
Switch(config-vlan)#name administrativo
Switch(config-vlan)#exit
Switch(config)#exit
Switch#
COMANDO "SHOW VLAN BRIEF"
Switch#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4
Fa0/5, Fa0/6, Fa0/7, Fa0/8
Fa0/9, Fa0/10, Fa0/11, Fa0/12
Fa0/13, Fa0/14, Fa0/15, Fa0/16
Fa0/17, Fa0/18, Fa0/19, Fa0/20
Fa0/21, Fa0/22, Fa0/23
10 pesquisa active
20 administrativo active
1002 fddi-default active
1003 token-ring-default active
1004 fddinet-default active
1005 trnet-default active
Switch#
**COMANDO "SWITCHPORT MODE ACCESS" **
Switch(config)#INTER
Switch(config)#interf
Switch(config)#interface f
Switch(config)#interface fastEthernet 0/1
Switch(config-if)#sw
Switch(config-if)#switchport mode
Switch(config-if)#switchport mode acc
Switch(config-if)#switchport mode access
Switch(config-if)#
VINCULANDO VLAN 10 e 20
Switch(config-if)#switchport access vl
Switch(config-if)#switchport access vlan
Switch(config-if)#switchport access vlan
Switch(config-if)#switchport access vlan 10
Switch(config-if)#exit
Switch(config)#interface fastEthernet 0/2
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 20
Switch(config-if)#exit
Switch(config)#

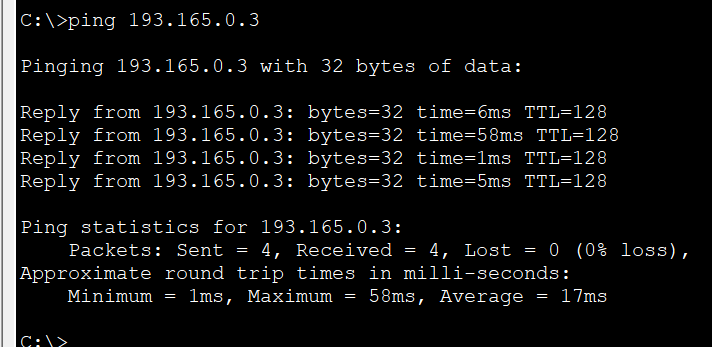

PING PC VLAN 10 PARA VLAN 10

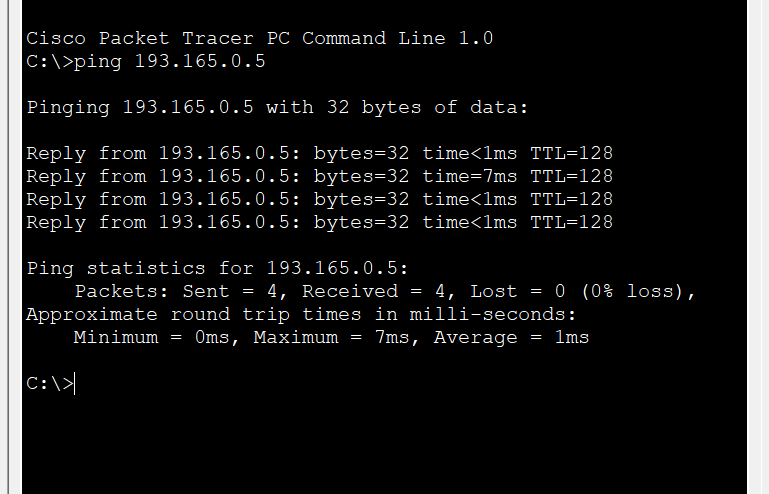

PING PC VLAN 20 PARA VLAN 20
